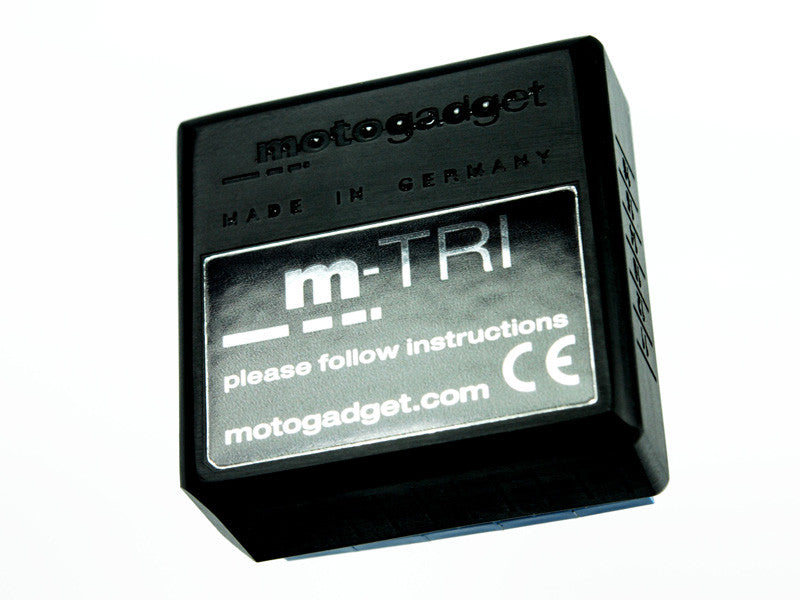

Finally and exclusively available at motogadget – the m-TRI signal adapter for Triumph Twin and Triple models with CAN bus technology!
In the past, it was not possible to remove the original instruments on the Triumph Twin models (years 2011 and later) and Triple models (years 2006 and later). Except for the Breakout Box Triumph – exclusively designed for motoscope Pro – there was no way to operate a motogadget instrument.
Once the bulky original instrument was disconnected, the built-in CAN bus of these models instantly became inoperative. No mods were even possible.
The solution – specially designed for use with Twin models – has arrived: the m-TRI, exclusively at motogadget.
The m-TRI not only provides engine speed and ground speed, but also the signals for the indicator lights: left/right turn signal, low fuel indicator, error memory, high beam, neutral, water temp HIGH, oil pressure.
Note that some of the indicator lights on instruments with 4 or 5 LEDs are multi-functional.

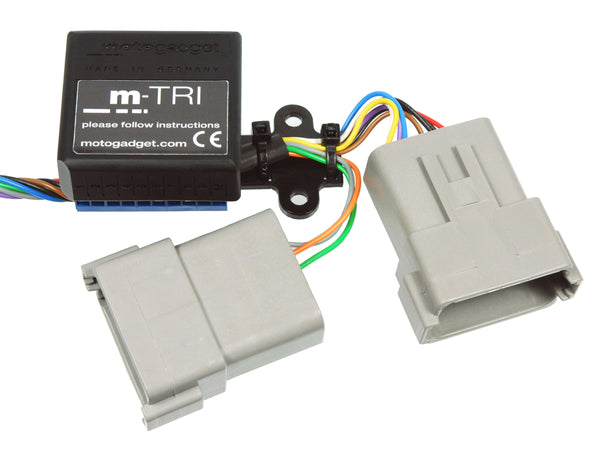

Another big advantage is the fool-proof installation. The original connector is used, and the cables for the instrument and indicator lights are connected to the terminals of the m-TRI with color codes. No soldering or cable detection. No changing the wiring harness. No voiding the vehicle warranty.
This simple installation is almost Plug and Play. It saves time ...and money.
Currently, the models listed above are available. Further models/years will gradually follow.
Please select your model and its model year. Please note that the model year is not necessarily identical to the year of manufacture!
Identify the 10th digit from the left on the VIN number; this number/letter will give you the model year.
A = 2010
B = 2011
C = 2012
D = 2013
Dimensions: Length/ Width/ Height: 42 mm/ 42 mm/ 27 mm
Scope of delivery: m-TRI adapter; connector (matching the model selected); end ferrules; 2x M3 screws; cable holder; cable ties.
If you purchase an m-TRI in combination with one of ther motogadget instruments, you will only be charged the posted price. BOTH articles – an m-TRI and an motogadget instrument – have to be purchased with one order. If you want to purchase the m-TRI as a single component the price is $479.00. This combined order discount is not offered when one of the articles is purchased at a later date. If you try and just purchase this without a gauge, your order will be canceled and re-billed for the full $479 price!
The m-TRI will work with the motoscope tiny series, motoscope mini and the classic series. It does not work with the motoscope pro.
Attention: The m-TRI will not work on 2015 models!
Usually ships in 4-6 days
