Motogadget mo-CAN adapter

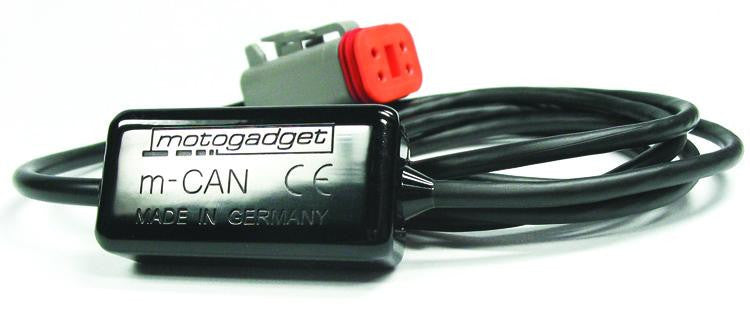

The mo-CAN OBD HD is a digital adapter for the hassle-free direct connection of our instruments to the diagnostic interface of post-2004* Harley-Davidson™ bikes.
Plug & Drive - it doesn't get easier!
A tiny black box frees you of the necessity to install speed or RPM sensors. Every Harley-Davidson™ bike later than 2004* is equipped with this 3-pin connector interface. With the m-CAN OBD digital adapter simply plugged into the interface, your motogadget instruments can read data straight from the SAE J1850 machines data bus: Speed, RPM and MIL (check engine warning light). Voltage supply over the OBD data bus is also optional, making possible the operation of e. g. the motoscope mini without any installation procedures to the bike.
The instrument is simply connected to the m-CAN OBD. All compatibility issues between instruments and original speed sensors - especially w/ H-D models since 2007 - are solved. Also, the signal for the MIL/malfunction warning is read at the engine as well as peripherally and can be read by installing a LED/indicator light. This means that all original instruments are redundant and may be removed**. The m-CAN OBD consists of only a tiny, completely moulded-in box, an ODB-connector and a sufficiently long connector cable. It is resistant against vibrations and environmental exposure. It's serviceability is ensured even with less than 5V system voltage and meets all SAE-specifications for motorcycles.
** With certain models like the V-ROD, removing the original speedometer may lead to problems with the ECU/immobiliser. Please ask your local dealer or test before actually performing the modification (e. g. by disconnecting the original speedometer). In some cases, the immobiliser has to be disabled.
* The application is not possible with H-D Softtails 2011 and up. Also not possible with other models with HD-LAN system. Fits only models with SAE J1850 system.
m-CAN J1850
The m-Can J1850 is a digital adapter for the hassle-free connection of our instruments PLUS indicator lights to the stock wiring harness. No soldering or crimping necessary, so the warranty remains intact.
You will receive the specific plug connectors required for the connection to the stock wiring harness of the Harley-Davidson model you selected. Just connect the wires of the instrument, indicator lights and of the included plug connector with the screw joints of the m-CAN J1850. Then plug this side of the plug connector into the specific connector of your bike, and you are ready to go. Almost plug ’n play, it doesn’t get any easier.
The m-CAN J1850 fits all Harley-Davidson with TwinCam engine from 2004 on that have DEUTSCH plug connectors and the dashboard on the tank (TwinCam). It also fits all Harley-Davidson Sportster models from 2004 on that have DEUTSCH (XL DEUTSCH) or MOLEX (XL MOLEX) plug connectors. Furthermore it can be used for all H-D Vrod motorcycles that have DEUTSCH (VRSC) plug connectors.
Important: not compatible with any models that use Harley-Davidson LAN, e.g. Softtail from 2011 and later, Dynas 2012 and later and all Rocker and Dyna-models, that have instruments on the fork bridge.
Parts delivered: m-CAN J1850 adapter with specific plug connector, 32 connection terminals, 2 x M3 mounting screws, 32 cable end sleeves, plastic sheet for fixing and anchoring the cables, 2 cable ties.
Specifications
Length, Height, Depth without plug connectors: 72 mm / 42 mm / 26,5 mm
Weight including plug connectors and Cables: approx. 70 g
Plug connectors: model specific, see pictures
Fastening with two mounting screws M3
Features
- Speed
- RPM
- controls indicator lamp for MIL (check engine warning)
- controls indicator lamp for turn signals
- controls indicator lamp for high beam
- controls indicator lamp for oil pressure
- controls indicator lamp for fuel reserve
- controls indicator lamp for alarm
Not available:
- indicator lamp for ABS (if existing)
- indicator lamp for 6. gear (if existing)
- indicator lamp for battery charge indicator (if existing)
- fuel gauge (if existing)
The m-Can J1850 is a digital adapter for the hassle-free connection of our instruments PLUS indicator lights to the stock wiring harness. No soldering or crimping necessary, so the warranty remains intact.
You will receive the specific plug connectors required for the connection to the stock wiring harness of the Harley-Davidson model you selected. Just connect the wires of the instrument, indicator lights and of the included plug connector with the screw joints of the m-CAN J1850. Then plug this side of the plug connector into the specific connector of your bike, and you are ready to go. Almost plug ’n ride, it doesn’t get any easier.
The m-CAN J1850 Twincam fits all H-D with TwinCam engine from 2004 on that have DEUTSCH plug connectors and the dashboard on the tank (TwinCam). It also fits all H-D Sportster models from 2004 on that have DEUTSCH (XL DEUTSCH) or MOLEX (XL MOLEX) plug connectors. Furthermore it can be used for all H-D Vrod motorcycles that have DEUTSCH (VRSC) plug connectors.
Important: not compatible with any models that use Harley-Davidson LAN, e.g. Softtail from 2011 and later, Dynas 2012 and later and all Rocker and Dyna-models, that have instruments on the fork bridge.
The m-CAN J1850 DEUTSCH fits all H-D with TwinCam engine from 2004 on that have DEUTSCH plug connectors and the dashboard on the tank (TwinCam). It also fits all Harley-Davidson Sportster models from 2004 on that have DEUTSCH (XL DEUTSCH) or MOLEX (XL MOLEX) plug connectors. Furthermore it can be used for all Harley-Davidson Vrod motorcycles that have DEUTSCH (VRSC) plug connectors.
Important: not compatible with any models that use Harley-Davidson LAN, e.g. Softtail from 2011 and later, Dynas 2012 and later and all Rocker and Dyna-models, that have instruments on the fork bridge.
The m-CAN J1850 MOLEX fits all H-D with TwinCam engine from 2004 on that have DEUTSCH plug connectors and the dashboard on the tank (TwinCam). It also fits all Harley-Davidson Sportster models from 2004 on that have DEUTSCH (XL DEUTSCH) or MOLEX (XL MOLEX) plug connectors. Furthermore it can be used for all Harley-Davidson Vrod motorcycles that have DEUTSCH (VRSC) plug connectors.
Important: not compatible with any models that use Harley-Davidson LAN, e.g. Softtail from 2011 and later, Dynas 2012 and later and all Rocker and Dyna-models, that have instruments on the fork bridge.
Usually ships in 4-6 days
