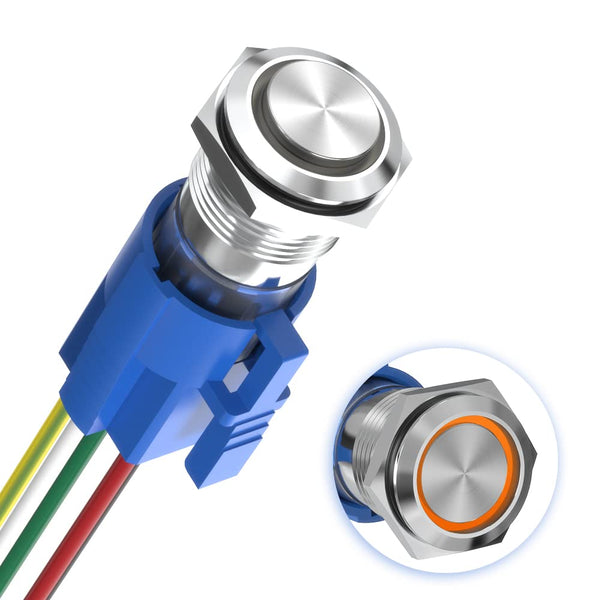

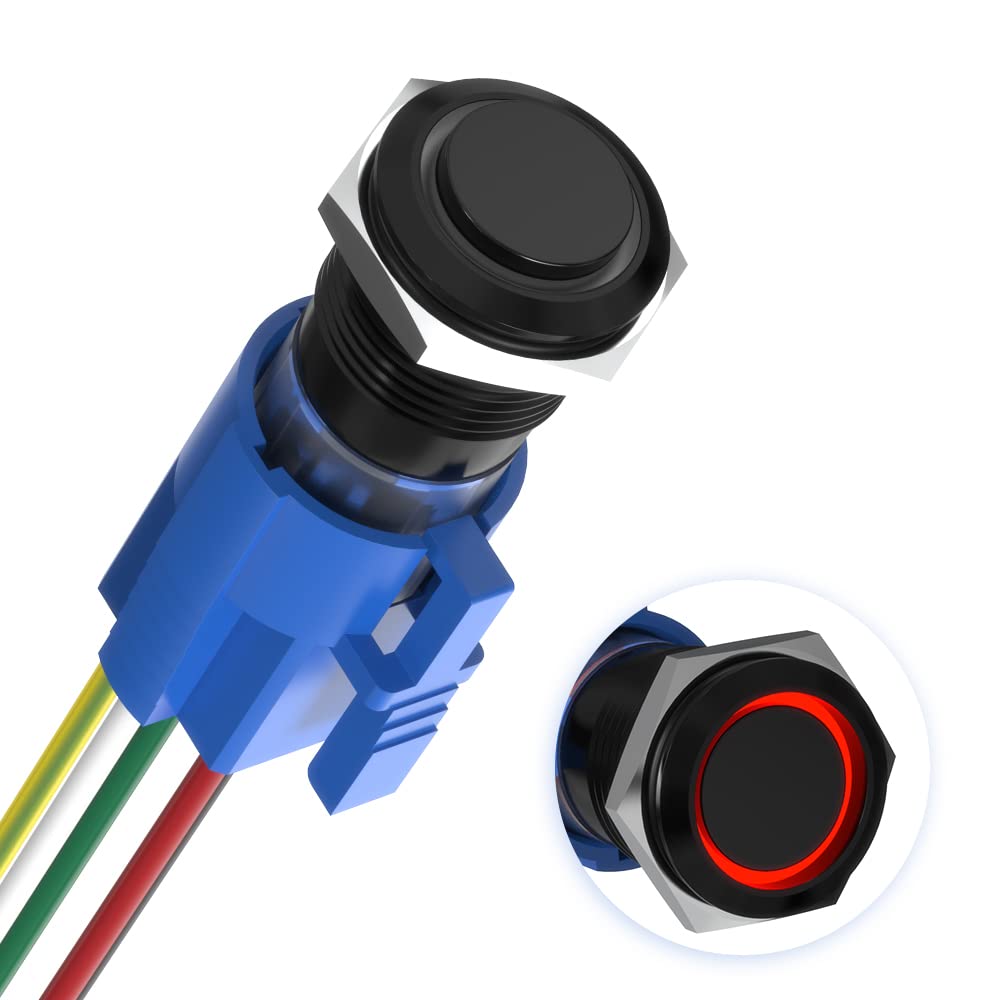

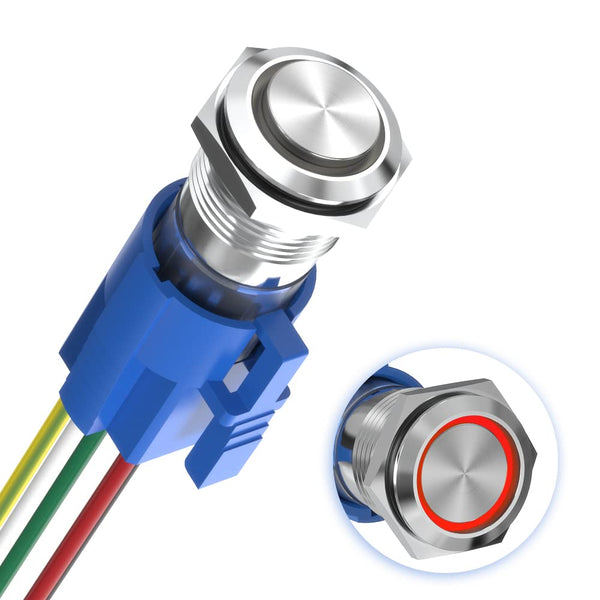

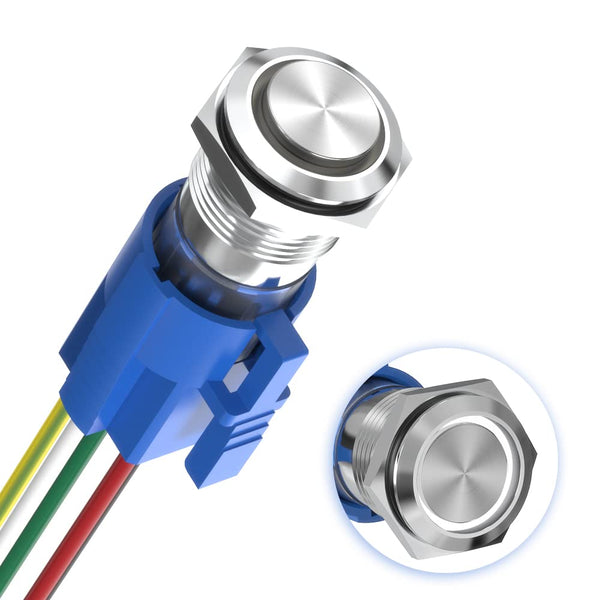

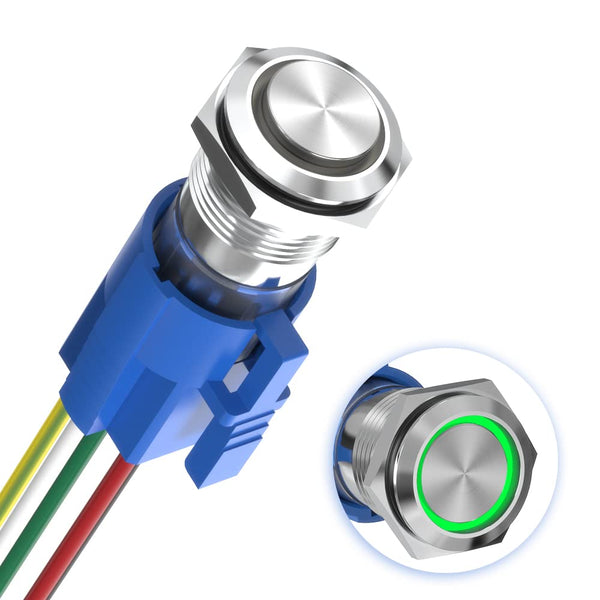

Momentary or Latch power buttons

$ 20.00
  • [Momentary Mode]: Push and HOLD, Normally Open Circuit ON. Release, Normally Open Circuit OFF.

  • [Latch Mode]: Push and Release, button locked, Normally Open Circuit ON. Push and Release again, button recovered, Normally Open Circuit OFF.

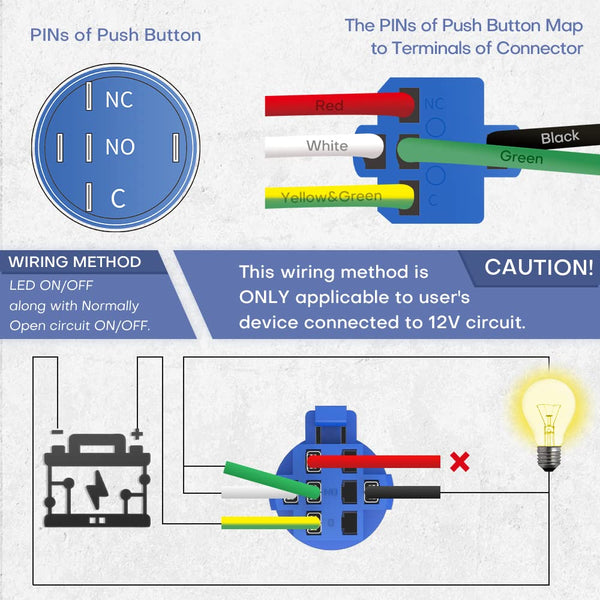

  • [LED Indication]: DC12V LED Ring. DO NOT connect to circuit voltage over 12V which will short the LED indicator. Indicator can be ALWAYS-ON or ON/OFF along with circuit

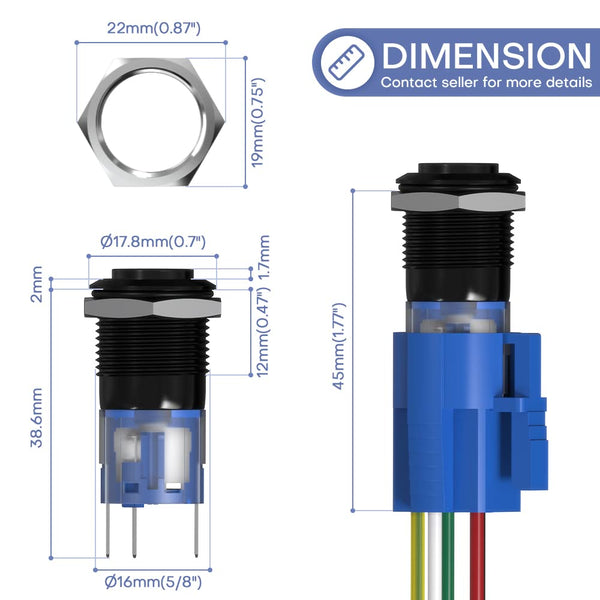

  • [Mounting]: Diameter size:16mm. Mounting hole diameter should be at least 16mm(0.63") and Smaller than 16.2mm(0.64")
  • [Reliable Material]: Stainless steel 304 and tough plastic shell. 100,000 times electrical lifelong internal silver contact
  • [Protection]: With IP67 grade and IK08 protection, waterproof and anti-dust. This push-button switch can work in wet condition but NOT under water.

  • NOTE: Includes the switch and socket connector. Price is for one switch.

    Get a relay HERE


      Usually ships in 1-3 Business Days
