Koso TNT-01S Speedometer

$ 239.95

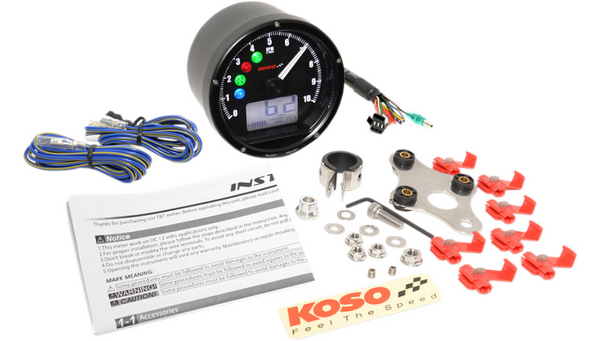

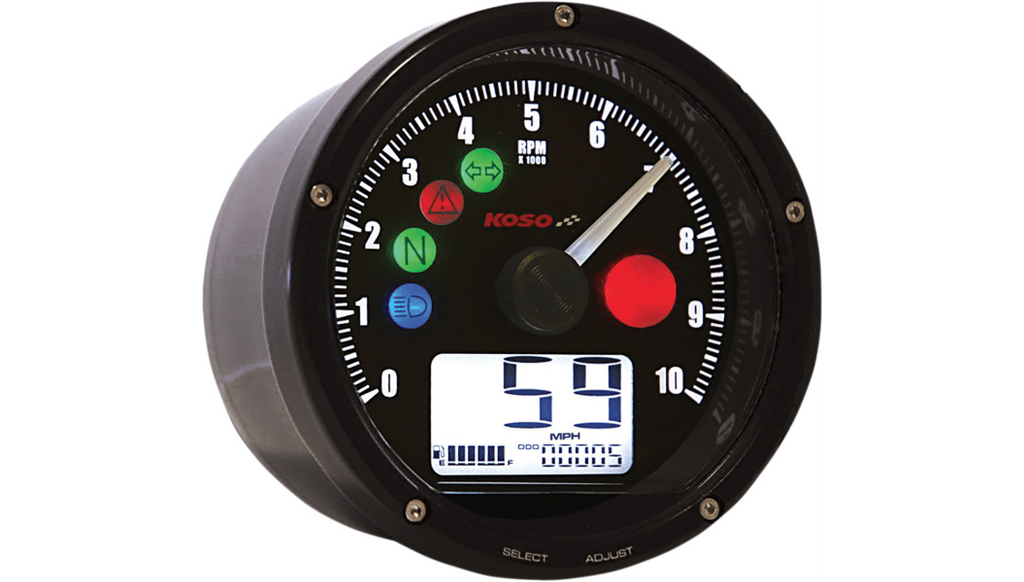

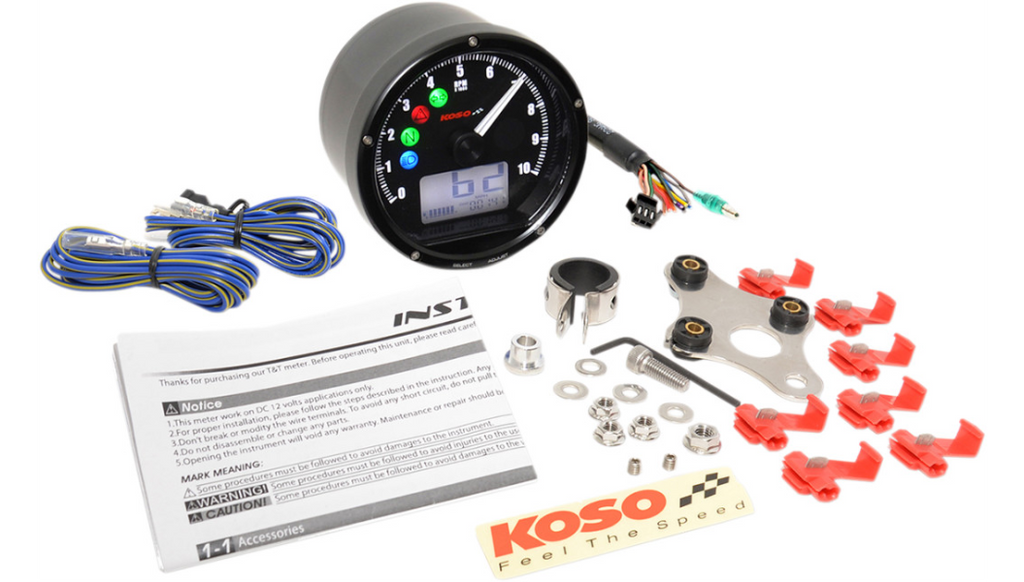

Our TNT-01 multi-functions speedometer/tachometer is the perfect meter for all the Cafe Racers and special projects. The TNT-01 meter uses a stepper motor for a fast and smooth response. The instrument features many functions such as, speed, odometer, trip meter, RPM, fuel gauge, clock, voltage, indicator light and more… This meter is available in black or white face and includes the installation brackets and speed sensor.


Speedometer Display range : 0~360km/h (0~225MPH)
Display unit : km/h & MPH
Display internal: < 0.5 Second
Odometer Display range : 0~99999 km (mile)
reset automatically after 0~99999 km (mile)
Display unit : 1 km (mile)
Trip meter A/B Display range : 0~999.9 km (mile),
reset automatically after 0~999.9 km (mile)
Display unit : 0.1 km (mile)
Tire circumference Setting range : 300 2,500 mm
Setting unit : 1 mm - Sensor point : 6
Tachometer Display range : 0~10,000 RPM
Setting unit: 100 RPM
Warning(shift light) Light on (F-OFF)
Flash (F-ON)
The RPM input signal number setting Setting range 0.5, 1~24
The RPM input pulse Setting range: HI (The positive wave pulse)
Lo (The negative wave pulse)
Fuel meter Display range: 6 levels
Display unit: Each level represent 16.6 %
Setting range: 100?, 250?, 510?, 1200?, SW
Clock 24 H
Volt meter Display range: DC 8~18 V. Flashing warning when voltage lower than 11.5 V or higher than 15.5 v
Backlight brightness Setting range: 1-5 (Darkest)~5-5 (Brightest)
Setting unit: Each level represents 20 %
Effective voltage DC 12 V
Effective temperature range -10~+60°C
Meter standard JIS D 0203 S2

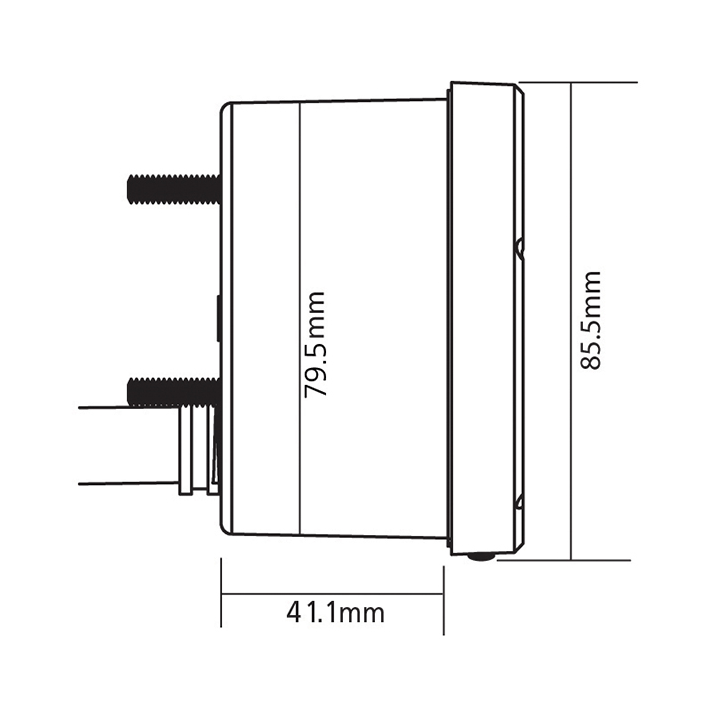

Meter size 85.5 x 79.5 X 41.1 mm
Meter weight Around 127.3 g
Indicator light color Repeater-green, Warning-Red
Neutral-green, High beam-blue
Sensor type Passive speed sensor : BF019005


Add the optional mounting bracket


Usually ships in 1-3 Business Days
