Motogadget mo.lock NFC

$ 156.00

mo.lock NFC - the digital touch-less ignition lock

The mo.lock NFC is a contact free digital ignition lock and substitutes mechanical ignition locks or their electrical switching feature respectively.

The associated digital key/transponder unlocks when the mo-lock NFC is approached (switching distance approx. 40 mm (1.5")) and the ignition is switched on or off - completely contact free.

The mo.lock NFC is based on the latest NFC technology (Near Field Communication) and therefore, unlike e.g. radio remote controls, extremely tamper-proof.
Each key/transponder has a unique digital code. Only the right digital code unlocks the mo.lock. Key and mo.lock are absolutely free of mechanical wear.

The mo.lock switches an automotive relay with a possible load of up to 40 A - sufficient power for every on-board system.

The hidden mounting of the small mo.lock, covered by non-metallic parts like e.g. a plastic side panel, permits completely removing the mechanic ignition lock. A clean look and various design possibilities are guaranteed - especially for custom bikes!

The two keys have the size of a key-chain and can be used for switching and learning new keys. A maximum of 125 keys can be learned to each mo.lock NFC. Additional keys can be purchased from us.

The mo-lock NFC has a LED on the front which indicates different status by color. To protect the battery the standby current in switched-off mode is only 3,2 mA, reduces to 1,5 mA after 16hrs und after 8 days to 0,75 mA.

Note: We do not recommend using the mo.lock combined with immobilizers! Please contact your dealer/manufacturer for information about the possible deactivation of the immobilizer.

Dimensions and specifications
Transmitter/receiver, diameter of installed assembly: 30 mm
Height: 12 mm without terminals and bracket
Weight incl. cable: approx. 35 g

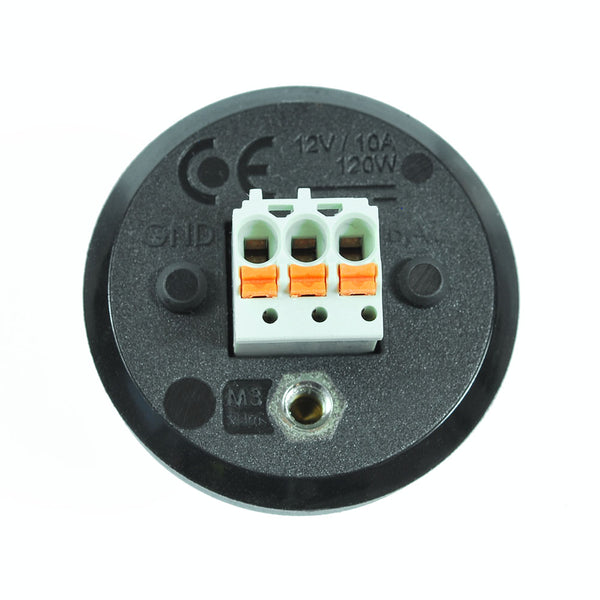

Fixture: 1 x M3 threaded hole on back side
Operating voltage: 8V - 18V
Operating temperature: -20 °C... +80 °C (-4F - 176F)

In the box
mo.lock NFC

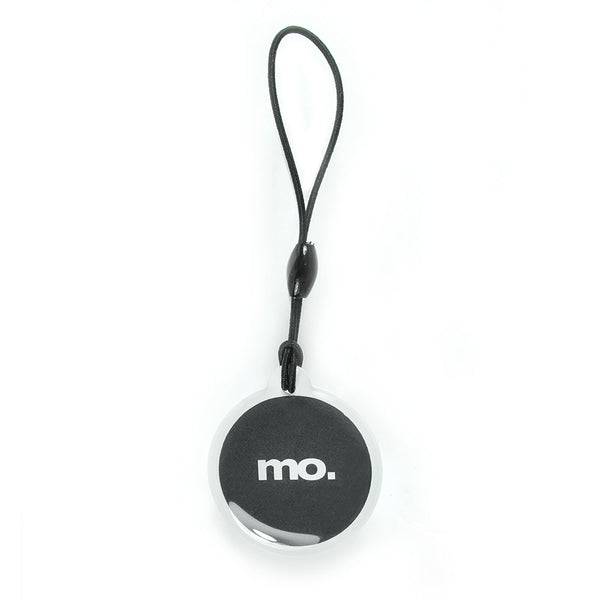

2 keys
1 automotive relay 12V/40A
Detailed installation and operating instructions

Advantages

  • NFC technology is tamper-resistant
  • Each key has a unique code
  • The key first activates the mo.lock NFC without touching it and then, via the relay, the entire on-board system
  • Neither key nor mo.lock suffer from mechanical wear
  • The key requires no battery - fail-safe
  • No overload or scorched pins possible due to indirect switching via the 40 A main relay
  • The mo.lock NFC is very compact an can be mounted hidden in many places
  • Water tight and vibration resistant because of the molded-in construction
  • Keys can be easily purchased and 'learned' to any mo.lock NFC - your integrated locksmith
  • A switching distance of 2 - 4 cm (3/4" - 1 1/2") ensures convenient switching while excluding the possibility of accidental engagement
  • An integrated RGB-LED shows the status of the mo.lock NFC while switching, connecting and 'teaching' new keys
ATTENTION: Please order the connection cable (mo.lock NFC cable kit) separately. A complete wiring harness saves assembly time and can be ordered HERE!

Get an extra key here!

Installation instructions HERE!
