Motogadget chronoclassic speedo

$ 538.00

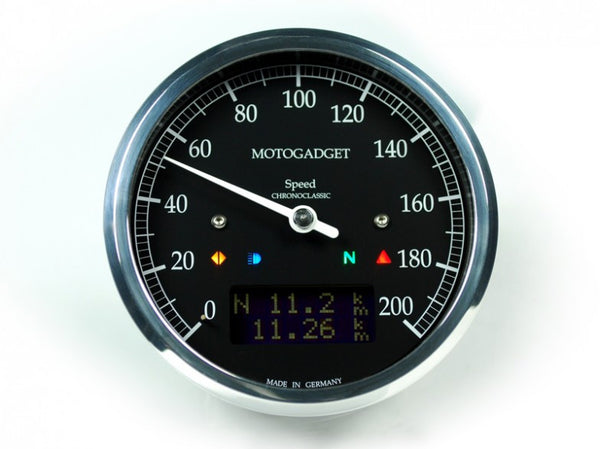

The motogadget Chronoclassic speedo is an analogue speedometer with many additional features in a classic round casing. Technically identical to the motoscope classic speedo, it brandishes a black dial and a white indicator. The design resembles old Smiths brand instruments.

Versions
Another distinct characteristic is the dark LC display of the DarkEdition. It further increases the harmonic look of the gauge.

Please note: We explicitly stress that readability decreases in cases of direct sunlight. If readability is of primary concern to you, please purchase the standard green display.

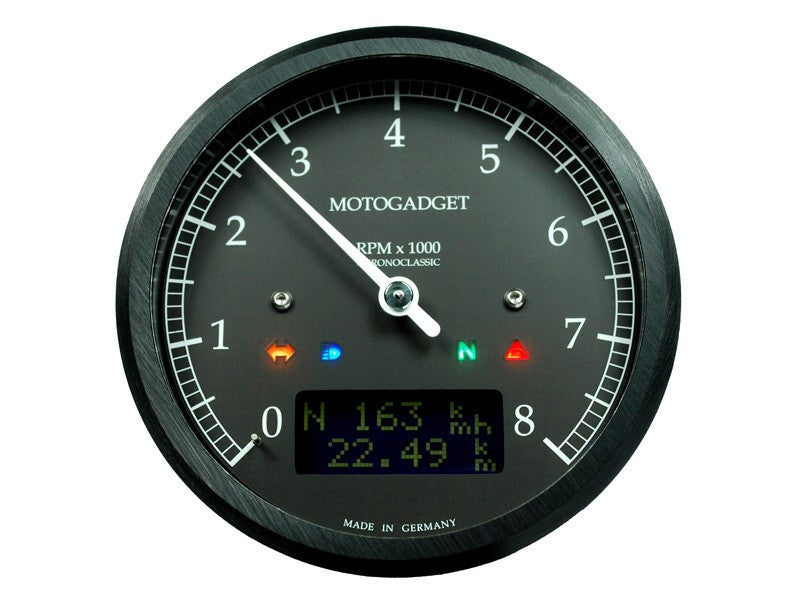

A technically identical instrument is also available with a white dial (please refer to the motoscope classic speedo) or as analogue rev counter (please refer to the analogue tacho CLASSIC series).

Scope of Supply
Instrument with approx. 55 cm (21.5”) connector cable, complete wiring, fuse, speedometer sensor M5 x 0,5 fine-pitch thread with 150 cm (59”) connector cable, 2 magnets, mini push-button, 3x M4 screws (stainless steel), detailed installation and operating instructions. Please note that temperature and pressure sensors have to be ordered separately (refer to "Accessories").

Specifications

  • Mounting diameter: 80 mm
  • Overall diameter (bezel): 85 mm
  • Depth without cable fitting: 34 mm
  • Weight: approx. 230 g
  • Mounting: 3 x M4 threaded hole
  • Power consumption (in operation): approx. 200 mA (depending on load)
  • Power consumption (in standby): 0 mA
  • Operating voltage: 9-18 V
  • Operating temperature: -20 °C... +80 °C (-4F … 176F)

    To make the installation of the motoscope tiny easier on newer (2004 and up) Harley-Davidson models with CAN Bus technology look at the motogadget m-CAN adapter

    To connect the motoscope tiny to one of the newer Triumph Twin or Triple models with CAN Bus technology check out the m-TRI from motogadget.



    Get a LSL mounting bracket for Triumph triples here!



    Note: this is a special order gauge that comes from Germany, non stocking item.

    Usually ships in 4-6 days
